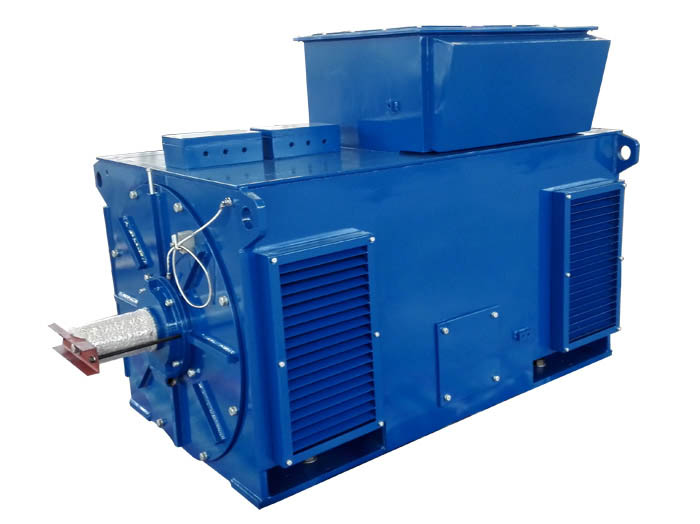

IP23 High Voltage squirrel Cage Induction Motor

Technical characteristics

Electrical performance data

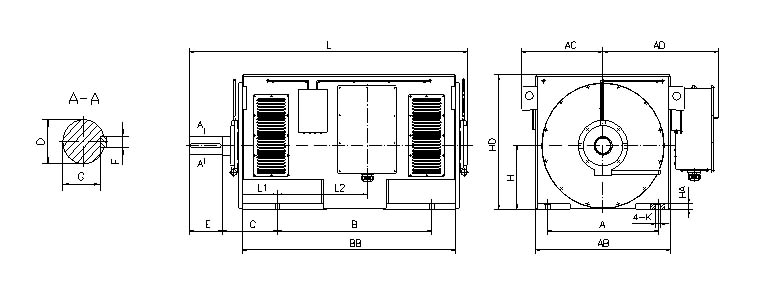

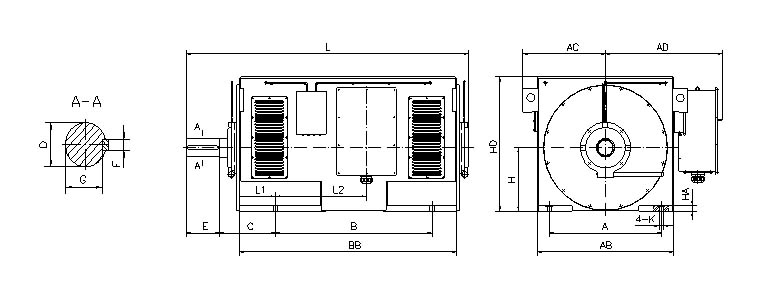

Mechanical dimension data

Product advantages

APPLICATIONS

Product technical standards

Please check with KINCHI engineers.

Product use environment

Y 6kV 6.6kV Series high voltage motors
Motor Type	Rated Power		Rated Speed	Efficiency	Power Factor	Current			Torque			Moment of inertia (J)	Approx WT
						Full Load 6kV	Full Load 6.6kV	Locked Rotor	Full Load	Locked Rotor	Pull Out
	kW	(HP)	RPM	%	%	A	A	%FLC	kg-m	%FLT	%FLT	kg-m²	kg
Y355₁-2	220	295	2975	93.3	86	26.4	24.0	700	72	60	180	3.2	2180
Y355₂-2	250	335	2975	93.4	86	29.9	27.2	700	82	60	180	3.3	2230
Y355₃-2	280	375	2975	93.6	86	33.5	30.4	700	92	60	180	3.5	2290
Y355₄-2	315	420	2975	93.9	86	37.5	34.1	700	103	60	180	3.8	2350
Y355₅-2	355	475	2975	94.1	86	42.2	38.4	700	116	60	180	4.0	2410
Y355₆-2	400	535	2975	94.5	86	47.4	43.1	700	131	60	180	4.2	2480
Y400₁-2	450	605	2980	94.7	86	53.2	48.3	700	147	60	180	5.1	2620
Y400₂-2	500	670	2980	95.0	87	58.2	52.9	700	164	60	180	5.2	2750
Y400₃-2	560	750	2980	95.1	87	65.1	59.2	700	183	60	180	5.4	2880
Y400₄-2	630	845	2980	95.2	87	73.2	66.5	700	206	60	180	5.8	3020
Y450₁-2	710	950	2980	95.3	87	82.4	74.9	700	232	60	180	11.0	3560
Y450₂-2	800	1070	2980	95.6	87	92.6	84.1	700	262	60	180	11.5	3690
Y450₃-2	900	1210	2980	95.7	87	104.0	94.6	700	294	60	180	12.0	3830
Y450₄-2	1000	1340	2980	95.8	88	114.1	103.8	700	327	60	180	12.6	4050
Y500₁-2	1120	1500	2980	95.9	88	127.7	116.1	700	366	60	180	16	4550
Y500₂-2	1250	1680	2980	96.1	88	142.2	129.3	700	409	60	180	17	4800
Y500₃-2	1400	1880	2980	96.2	88	159.1	144.7	700	458	60	180	19	4980
Y500₄-2	1600	2140	2980	96.3	88	181.7	165.2	700	523	60	180	21	5250
Y560₁-2	1800	2410	2980	96.3	88	204.4	185.8	700	589	60	180	40	5960
Y560₂-2	2000	2680	2980	96.5	88	226.6	206.0	700	654	60	180	47	6200
Y560₃-2	2240	3000	2980	96.6	88	253.6	230.5	700	733	60	180	54	6450
Y630₁-2	2500	3350	2982	96.6	89	279.8	254.4	700	817	60	180	70	7800
Y630₂-2	2800	3750	2982	96.7	89	313.1	284.6	700	915	60	180	88	8100
Y630₃-2	3150	4220	2982	96.8	89	351.8	319.9	700	1029	60	180	96	8400
Y355₁-4	185	250	1485	93.5	85	22.4	20.4	650	121	80	180	4.8	1550
Y355₂-4	200	270	1485	93.6	85	24.2	22.0	650	131	80	180	4.9	1620
Y355₃-4	220	295	1485	93.7	85	26.6	24.2	650	144	80	180	5.0	1750
Y355₄-4	250	335	1485	93.8	85	30.2	27.4	650	164	80	180	5.4	1880
Y355₅-4	280	375	1485	93.9	86	33.4	30.3	650	184	80	180	5.9	2050
Y355₆-4	315	420	1485	94.1	86	37.5	34.1	650	207	80	180	6.7	2200
Y400₁-4	355	475	1485	94.3	86	42.1	38.3	650	233	80	180	12.0	2520
Y400₂-4	400	535	1485	94.4	86	47.4	43.1	650	262	80	180	12.5	2680
Y400₃-4	450	605	1485	94.6	86	53.2	48.4	650	295	80	180	13.0	2850
Y400₄-4	500	670	1485	94.8	87	58.3	53.0	650	328	80	180	13.5	3000
Y400₅-4	560	750	1485	95.0	87	65.2	59.3	650	367	80	180	14.0	3180
Y450₁-4	630	845	1485	95.2	87	73.2	66.5	650	413	80	180	18.0	3350
Y450₂-4	710	950	1485	95.4	87	82.3	74.8	650	466	80	180	19.0	3450
Y450₃-4	800	1070	1485	95.5	87	92.7	84.2	650	525	80	180	20.0	3700
Y450₄-4	900	1210	1485	95.6	87	104.1	94.7	650	591	80	180	22.0	3920
Y500₁-4	1000	1340	1485	95.7	87	115.6	105.1	650	656	70	180	26	4580
Y500₂-4	1120	1500	1485	95.8	88	127.8	116.2	650	735	70	180	29	4700
Y500₃-4	1250	1680	1485	96.0	88	142.4	129.4	650	820	70	180	32	4880
Y500₄-4	1400	1880	1485	96.0	88	159.5	145.0	650	919	70	180	34	5020
Y560₁-4	1600	2140	1485	96.1	89	180.0	163.6	650	1050	60	180	52	6020
Y560₂-4	1800	2410	1485	96.2	89	202.3	183.9	650	1181	60	180	55	6280
Y560₃-4	2000	2680	1485	96.4	89	224.3	203.9	650	1312	60	180	60	6500
Y630₁-4	2240	3000	1492	96.5	89	251.0	228.2	650	1463	60	180	108	7450
Y630₂-4	2500	3350	1492	96.6	89	279.8	254.4	650	1633	60	180	115	7780
Y630₃-4	2800	3750	1493	96.6	89	313.4	284.9	650	1828	60	180	130	8120
Y355₃-6	185	250	985	93.3	82	23.3	21.2	600	183	80	180	9.4	1820
Y355₄-6	200	270	985	93.4	82	25.1	22.8	600	198	80	180	9.5	1920
Y355₅-6	220	295	985	93.5	82	27.6	25.1	600	218	80	180	10.0	2050
Y355₆-6	250	335	985	93.7	82	31.3	28.5	600	247	80	180	10.5	2120
Y400₂-6	280	375	985	93.9	83	34.6	31.4	600	277	80	180	17.0	2800
Y400₃-6	315	420	985	94.2	83	38.8	35.2	600	312	80	180	18.0	2900
Y400₄-6	355	475	985	94.4	83	43.6	39.6	600	351	80	180	19.0	2950
Y400₅-6	400	535	985	94.4	83	49.1	44.7	600	396	80	180	20.0	3250
Y450₁-6	450	605	990	94.7	84	54.4	49.5	600	443	80	180	26	3460
Y450₂-6	500	670	990	95.0	85	59.6	54.2	600	492	80	180	27	3590
Y450₃-6	560	750	990	95.1	85	66.7	60.6	600	551	80	180	29	3720
Y450₄-6	630	845	990	95.2	85	74.9	68.1	600	620	80	180	30	3850
Y500₁-6	710	950	990	95.4	85	84.3	76.6	600	699	70	180	39	4200
Y500₂-6	800	1070	990	95.5	85	94.8	86.2	600	787	70	180	42	4350
Y500₃-6	900	1210	990	95.6	85	106.6	96.9	600	886	70	180	45	4500
Y500₄-6	1000	1340	990	95.7	85	118.3	107.5	600	984	70	180	47	4650
Y560₁-6	1120	1500	991	95.8	86	130.8	118.9	650	1101	70	180	63	5350
Y560₂-6	1250	1680	991	96.0	86	145.7	132.4	650	1229	70	180	70	5610
Y560₃-6	1400	1880	991	96.0	86	163.2	148.3	650	1377	70	180	74	5850
Y630₁-6	1600	2140	993	96.1	86	186.3	169.4	650	1570	70	180	128	7300
Y630₂-6	1800	2410	994	96.2	86	209.4	190.3	650	1765	70	180	136	7620
Y630₃-6	2000	2680	994	96.4	86	232.1	211.0	650	1961	70	180	143	7980
Y400₃-8	220	295	740	93.4	78	29.1	26.4	550	290	80	180	21.0	2620
Y400₄-8	250	335	740	93.5	79	32.6	29.6	550	329	80	180	22.0	2850
Y400₅-8	280	375	740	93.7	79	36.4	33.1	550	369	80	180	23.0	3220
Y450₁-8	315	420	740	93.9	80	40.4	36.7	550	415	80	180	28	3020
Y450₂-8	355	475	740	94.0	80	45.4	41.3	550	467	80	180	30	3220
Y450₃-8	400	535	740	94.2	80	51.1	46.4	550	527	80	180	32	3450
Y450₄-8	450	605	740	94.3	81	56.7	51.5	550	593	80	180	34	3520
Y500₁-8	500	670	740	94.8	81	62.7	57.0	550	658	80	180	43	4550
Y500₂-8	560	750	740	94.9	82	69.2	63.0	550	737	80	180	46	4700
Y500₃-8	630	845	740	95.0	82	77.8	70.7	550	830	80	180	50	4880
Y500₄-8	710	950	740	95.0	82	87.7	79.7	550	935	80	180	53	5020
Y560₁-8	800	1070	740	95.2	84	96.3	87.5	600	1054	70	180	83	5550
Y560₂-8	900	1210	740	95.3	84	108.2	98.4	600	1185	70	180	90	5780
Y560₃-8	1000	1340	740	95.4	84	120.1	109.2	600	1317	70	180	96	6050
Y630₁-8	1120	1500	744	95.5	84	134.3	122.1	600	1467	70	180	138	7650
Y630₂-8	1250	1680	744	95.6	84	149.8	136.2	600	1637	70	180	144	8000
Y630₃-8	1400	1880	744	95.7	84	167.6	152.4	600	1834	70	180	156	8320
Y630₄-8	1600	2140	744	95.8	84	191.3	173.9	600	2096	70	180	166	8620
Y450₁-10	220	295	590	92.8	77	29.6	26.9	550	363	80	180	28	2900
Y450₂-10	250	335	590	92.9	78	33.2	30.2	550	413	80	180	30	3000
Y450₃-10	280	375	590	93.1	78	37.1	33.7	550	462	80	180	32	3220
Y450₄-10	315	420	590	93.3	79	41.1	37.4	550	520	80	180	34	3300
Y450₅-10	355	475	590	93.5	79	46.2	42.0	550	586	80	180	36	3380
Y500₁-10	400	535	590	93.9	80	51.2	46.6	550	661	80	180	52	4270
Y500₂-10	450	605	590	93.9	80	57.6	52.4	550	743	80	180	56	4420
Y500₃-10	500	670	590	94.2	80	63.8	58.0	550	826	80	180	60	4620
Y500₄-10	560	750	590	94.3	80	71.4	64.9	550	925	80	180	65	4830
Y500₅-10	630	845	590	94.4	80	80.3	73.0	550	1041	80	180	68	5050
Y560₁-10	710	950	590	94.5	82	88.2	80.2	600	1173	70	180	99	5630
Y560₂-10	800	1070	590	94.8	82	99.0	90.0	600	1321	70	180	105	5870
Y560₃-10	900	1210	590	94.9	82	111.3	101.2	600	1487	70	180	115	6120
Y630₁-10	1000	1340	594	95.0	82	123.5	112.3	600	1641	70	180	151	7650
Y630₂-10	1120	1500	594	95.1	82	138.2	125.6	600	1837	70	180	160	8030
Y630₃-10	1250	1680	594	95.4	82	153.8	139.8	600	2051	70	180	174	8390
Y630₄-10	1400	1880	594	95.5	82	172.0	156.4	600	2297	70	180	189	8680
Y450₄-12	220	295	490	92.2	73	31.5	28.6	550	438	80	180	40	3400
Y450₅-12	250	335	490	92.4	73	35.7	32.4	550	497	80	180	42	3650
Y500₁-12	280	375	490	93.3	74	39.0	35.5	550	557	80	180	49	4100
Y500₂-12	315	420	490	93.5	75	43.2	39.3	550	626	80	180	53	4220
Y500₃-12	355	475	490	93.6	75	48.7	44.2	550	706	80	180	57	4370
Y500₄-12	400	535	490	93.9	75	54.7	49.7	550	796	80	180	62	4540
Y500₅-12	450	605	490	93.9	75	61.5	55.9	550	895	80	180	69	4720
Y560₁-12	500	670	490	94.3	79	64.6	58.7	600	994	70	180	97	5510
Y560₂-12	560	750	490	94.4	79	72.3	65.7	600	1114	70	180	108	5720
Y560₃-12	630	845	490	94.5	79	81.2	73.8	600	1253	70	180	114	5980
Y630₁-12	710	950	494	94.5	79	91.5	83.2	600	1401	70	180	172	7630
Y630₂-12	800	1070	494	94.8	79	102.8	93.4	600	1578	70	180	183	7960
Y630₃-12	900	1210	494	94.9	79	115.5	105.0	600	1775	70	180	198	8290
Y630₄-12	1000	1340	494	95.0	79	128.2	116.6	600	1973	70	180	212	8570

Y 10kV (11kV) Series high voltage motors
Motor Type	RatedPower		RatedSpeed	Efficiency	Power Factor	Current			Torque			Moment of inertia (J)	Approx WT
						Full Load 6kV	Full Load 6.6kV	Locked Rotor	Full Load	Locked Rotor	Pull Out
	kW	(HP)	RPM	%	%	A	A	%FLC	kg-m	%FLT	%FLT	kg-m²	kg
Y400₁-2	220	295	2980	93.3	85	16.0	14.6	750	72	60	180	5.1	2410
Y400₂-2	250	335	2980	93.4	85	18.2	16.5	750	82	60	180	5.2	2530
Y400₃-2	280	375	2980	93.6	85	20.3	18.5	750	92	60	180	5.4	2650
Y400₄-2	315	420	2980	93.9	85	22.8	20.7	750	103	60	180	5.8	2780
Y450₁-2	355	475	2980	94.3	87	25.0	22.7	700	116	60	180	9.5	3450
Y450₂-2	400	535	2980	94.5	87	28.1	25.5	700	131	60	180	10.0	3520
Y450₃-2	450	605	2980	94.7	87	31.5	28.7	700	147	60	180	10.5	3600
Y450₄-2	500	670	2980	94.9	87	35.0	31.8	700	164	60	180	11.0	3700
Y450₅-2	560	750	2980	95.0	87	39.1	35.6	700	183	60	180	11.5	3840
Y450₆-2	630	845	2980	95.0	87	44.0	40.0	700	206	60	180	12.0	3980
Y500₁-2	710	950	2980	95.1	88	49.0	44.5	700	232	60	180	16	4450
Y500₂-2	800	1070	2980	95.3	88	55.1	50.1	700	262	60	180	17	4620
Y500₃-2	900	1210	2980	95.4	88	61.9	56.3	700	294	60	180	18	4800
Y500₄-2	1000	1340	2980	95.5	88	68.7	62.5	700	327	60	180	19	4980
Y500₅-2	1120	1500	2980	95.6	88	76.9	69.9	700	366	60	180	20	5250
Y560₁-2	1250	1680	2980	95.9	89	84.6	76.9	700	409	60	180	40	5960
Y560₂-2	1400	1880	2980	96.0	89	94.6	86.0	700	458	60	180	47	6200
Y560₃-2	1600	2140	2980	96.0	89	108.1	98.3	700	523	60	180	54	6450
Y630₁-2	1800	2410	2982	96.1	90	120.2	109.2	700	588	60	180	70	7800
Y630₂-2	2000	2680	2982	96.3	90	133.2	121.1	700	654	60	180	88	8100
Y630₃-2	2240	3000	2982	96.5	90	148.9	135.4	700	732	60	180	96	8400
Y400_A-4	185	250	1480	93.1	83	13.8	12.6	700	122	70	180	10.5	2295
Y400_B-4	200	270	1480	93.2	83	14.9	13.6	700	132	70	180	11.0	2340
Y400₁-4	220	295	1480	93.3	83	16.4	14.9	700	145	70	180	11.5	2390
Y400₂-4	250	335	1480	93.4	83	18.6	16.9	700	165	70	180	12.0	2520
Y400₃-4	280	375	1480	93.5	83	20.8	18.9	700	184	70	180	12.5	2680
Y400₄-4	315	420	1480	93.8	83	23.4	21.2	700	207	70	180	13.0	2850
Y450₁-4	355	475	1485	93.9	86	25.4	23.1	700	233	70	180	17.0	3420
Y450₂-4	400	535	1485	94.0	86	28.6	26.0	700	262	70	180	17.5	3500
Y450₃-4	450	605	1485	94.4	86	32.0	29.1	700	295	70	180	18.0	3610
Y450₄-4	500	670	1485	94.5	86	35.5	32.3	700	328	70	180	19.0	3700
Y450₅-4	560	750	1485	94.7	86	39.7	36.1	700	367	70	180	20.0	3810
Y450₆-4	630	845	1485	94.9	86	44.6	40.5	700	413	70	180	22.0	3920
Y500₁-4	710	950	1485	95.4	87	49.4	44.9	700	466	70	180	25.0	4480
Y500₂-4	800	1070	1485	95.5	87	55.6	50.5	700	525	70	180	26	4580
Y500₃-4	900	1210	1485	95.6	88	61.8	56.2	700	591	70	180	29	4700
Y500₄-4	1000	1340	1485	95.7	88	68.6	62.3	700	656	70	180	32	4880
Y500₅-4	1120	1500	1485	95.8	88	76.7	69.7	700	735	70	180	34	5020
Y560₁-4	1250	1680	1485	96.0	89	84.5	76.8	700	820	70	180	52	6020
Y560₂-4	1400	1880	1485	96.1	89	94.5	85.9	700	919	70	180	55	6280
Y560₃-4	1600	2140	1485	96.2	89	107.9	98.1	700	1050	70	180	60	6500
Y630₁-4	1800	2410	1492	96.3	89	121.3	110.2	700	1176	60	180	108	7450
Y630₂-4	2000	2680	1493	96.5	89	134.5	122.2	700	1305	60	180	115	7780
Y630₃-4	2240	3000	1493	96.6	89	150.4	136.8	700	1462	60	180	130	8120
Y450₃-6	315	420	990	93.5	82	23.7	21.6	600	310	70	180	26	3460
Y450₄-6	355	475	990	93.7	83	26.4	24.0	600	349	70	180	27	3590
Y450₅-6	400	535	990	93.9	83	29.6	26.9	600	394	70	180	29	3720
Y450₆-6	450	605	990	94.0	83	33.3	30.3	600	443	70	180	30	3850
Y500₁-6	500	670	995	94.5	83	36.8	33.5	600	490	70	180	39	4200
Y500₂-6	560	750	995	94.6	84	40.7	37.0	600	548	70	180	42	4350
Y500₃-6	630	845	995	94.9	84	45.6	41.5	600	617	70	180	45	4500
Y500₄-6	710	950	995	95.0	84	51.4	46.7	600	695	70	180	47	4650
Y500₅-6	800	1070	995	95.2	84	57.8	52.5	600	784	70	180	50	4920
Y560₁-6	900	1210	990	95.4	85	64.1	58.3	600	886	70	180	63	5350
Y560₂-6	1000	1340	990	95.5	85	71.1	64.7	600	984	70	180	70	5610
Y560₃-6	1120	1500	990	95.7	85	79.5	72.3	600	1102	70	180	78.0	5890
Y560₄-6	1250	1680	990	95.9	86	87.5	79.6	600	1230	70	180	81.5	6160
Y630₁-6	1400	1880	995	96.1	86	97.8	88.9	600	1371	60	180	128	7300
Y630₂-6	1600	2140	995	96.2	86	111.7	101.5	600	1567	60	180	136	7620
Y630₃-6	1800	2410	995	96.2	86	125.6	114.2	600	1763	60	180	143	7980
Y500_B-8	280	375	740	93.0	77	22.6	20.5	600	369	70	180	42	4350
Y500₁-8	315	420	740	93.5	77	25.3	23.0	600	415	70	180	42	4350
Y500₂-8	355	475	740	93.7	77	28.4	25.8	600	467	70	180	44	4550
Y500₃-8	400	535	740	93.8	78	31.6	28.7	600	527	70	180	46	4700
Y500₄-8	450	605	740	93.9	78	35.5	32.2	600	593	70	180	50	4880
Y500₅-8	500	670	740	94.4	79	38.7	35.2	600	658	70	180	53	5020
Y500₆-8	560	750	740	94.5	79	43.3	39.4	600	737	70	180	56	5240
Y560₁-8	630	845	740	94.9	82	46.7	42.5	600	830	70	180	83	5560
Y560₂-8	710	950	740	95.0	82	52.6	47.8	600	935	70	180	90	5780
Y560₃-8	800	1070	740	95.2	82	59.2	53.8	600	1054	70	180	96	6050
Y560₄-8	900	1210	740	95.3	82	66.5	60.4	600	1185	70	180	99	6280
Y630₁-8	1000	1340	744	95.5	83	72.8	66.2	600	1310	70	180	144	8000
Y630₂-8	1120	1500	744	95.6	83	81.5	74.1	600	1467	70	180	156	8320
Y630₃-8	1250	1680	745	95.8	83	90.8	82.5	600	1635	70	180	166	8620
Y500₂-10	250	335	595	92.7	74	21.0	19.1	550	409	70	180	52	4270
Y500₃-10	280	375	595	93.1	74	23.5	21.3	550	459	70	180	56	4420
Y500₄-10	315	420	595	93.4	74	26.3	23.9	550	516	70	180	60	4620
Y500₅-10	355	475	595	93.5	75	29.2	26.6	550	581	70	180	65	4830
Y500₆-10	400	535	595	93.6	75	32.9	29.9	550	655	70	180	68	5050
Y560₁-10	450	605	590	93.8	77	36.0	32.7	600	743	70	180	98	5390
Y560₂-10	500	670	590	94.0	77	39.9	36.3	600	826	70	180	99	5630
Y560₃-10	560	750	590	94.1	78	44.1	40.0	600	925	70	180	105	5870
Y560₄-10	630	845	590	94.3	78	49.5	45.0	600	1041	70	180	115	6120
Y560₅-10	710	950	590	94.5	78	55.6	50.6	600	1173	70	180	118	6370
Y630₁-10	800	1070	594	94.9	80	60.8	55.3	600	1312	70	180	174	7680
Y630₂-10	900	1210	593	95.1	80	68.3	62.1	600	1479	70	180	160	8030
Y630₃-10	1000	1340	593	95.1	80	75.9	69.0	600	1643	70	180	174	8390
Y630₄-10	1120	1500	593	95.2	80	84.9	77.2	600	1841	70	180	189	8680
Y560₁-12	315	420	490	93.1	73	26.8	24.3	600	626	70	180	95	5280
Y560₂-12	355	475	490	93.2	73	30.1	27.4	600	706	70	180	97	5510
Y560₃-12	400	535	490	93.4	73	33.9	30.8	600	796	70	180	108	5720
Y560₄-12	450	605	490	93.5	73	38.1	34.6	600	895	70	180	114	5980
Y560₅-12	500	670	490	93.9	73	42.1	38.3	600	994	70	180	126	6230
Y630₁-12	560	750	492	94.1	74	46.4	42.2	600	1109	70	180	172	7630
Y630₂-12	630	845	493	94.3	74	52.1	47.4	600	1245	70	180	183	7960
Y630₃-12	710	950	493	94.5	74	58.6	53.3	600	1403	70	180	198	8290
Y630₄-12	800	1070	492	94.8	74	65.8	59.9	600	1585	70	180	212	8570

● Y Series 6kV high voltage motors

● MOUNTING DIMENSIONS FOR INSTALLATION
Frame Size	Pole	MOUNTING
		A	B	C	D		E	F		G		H		K1
355	2	630±1.75	900±1.75	315±4	80	+0.030	170±0.5	22	0	71	0	355	0	28	+0.62
						+0.011			-0.052		-0.2		-1		0
355	4～6	630±1.75	900±1.75	315±4	100	+0.035	210±0.5	28	0	90	0	355	0	28	+0.62
						+0.013			-0.052		-0.2		-1		0
400	2	710±1.75	1000±1.75	375±4	90	+0.035	170±0.5	25	0	81	0	400	0	35	+0.62
						+0.013			-0.052		-0.2		-1		0
400	4～8	710±1.75	1000±1.75	335±4	110	+0.035	210±0.57	28	0	100	0	400	0	35	+0.62
						+0.013			-0.052		-0.2		-1		0
450	2	800±1.75	1120±1.75	400±4	100	+0.035	210±0.57	28	0	90	0	450	0	35	+0.62
						+0.013			-0.052		-0.2		-1		0
450	4	800±1.75	1120±1.75	355±4	120	+0.035	210±0.57	32	0	109	0	450	0	35	+0.62
						+0.013			-0.062		-0.2		-1		0
450	6～12	800±1.75	1120±1.75	355±4	130	+0.040	250±0.57	32	0	119	0	450	0	35	+0.62
						+0.015			-0.062		-0.2		-1		0
500	2	900±2.1	1250±2.1	560±4	110	+0.035	210±0.57	28	0	100	0	500	0	42	+0.62
						+0.013			-0.052		-0.2		-1		0
500	4	900±2.1	1250±2.1	475±4	130	+0.04	250±0.57	32	0	119	0	500	0	42	+0.62
						+0.015			-0.062		-0.2		-1		0
500	6～10	900±2.1	1250±2.1	475±4	140	+0.04	250±0.57	36	0	128	0	500	0	42	+0.62
						+0.015			-0.062		-0.3		-1		0
560	2	1000±2.1	1400±2.1	560±4	130	+0.04	250±0.57	32	0	119	0	560	0	42	+0.62
						+0.015			-0.062		-0.2		-1		0
560	4	1000±2.1	1400±2.1	500±4	150	+0.04	250±0.57	36	0	138	0	560	0	42	+0.62
						+0.015			-0.062		-0.3		-1		0
560	6～12	1000±2.1	1400±2.1	500±4	160	+0.04	300±0.65	40	0	147	0	560	0	42	+0.62
						+0.015			-0.062		-0.3		-1		0
630	2	1120±2.1	1600±2.1	560±4	140	+0.04	250±0.57	36	0	128	0	630	0	48	+0.62
						+0.015			-0.062		-0.3		-1		0
630	4	1120±2.1	1600±2.1	530±4	170	+0.04	300±0.65	40	0	157	0	630	0	48	+0.62
						+0.015			-0.062		-0.3		-1		0
630	6～12	1120±2.1	1600±2.1	530±4	180	+0.04	300±0.65	45	0	165	0	630	0	48	+0.62
						+0.015			-0.062		-0.3		-1		0

● OUTLINE DIMENSIONS FOR INSTALLATION
Frame Size	Pole	OUTLINE
		AC	AD	AB	BB	HA	HD	L1	L2	L
355	2	500	760	780	1350	25	760	189	561	1725
355	4～6	500	760	780	1400	25	760	189	617	1815
400	2	570	900	888	1450	30	850	249	606	1830
400	4～6	570	900	888	1510	30	850	209	626	2000
450	2	599	926	980	1530	40	960	255	515	1910
450	4	599	926	980	1638	32	960	242	657	2055
450	6~12	599	926	980	1638	32	960	242	657	2105
500	2	660	1115	1112	1720	50	1790	330	990	2370
500	4	660	1000	1112	1720	35	1065	310	669	2200
500	6～12	660	1000	1112	1720	35	1065	310	669	2200
560	2	740	1200	1216	1940	55	1920	270	1120	2650
560	4	740	1050	1216	1938	45	1185	320	815	2475
560	6~12	740	1050	1216	1938	45	1185	320	815	2525
630	2	850	1350	1396	2100	55	2200	265	1320	2950
630	4～12	825	1150	1396	2080	50	1307	365	685	2677

● Y Series 10kV high voltage motors

● MOUNTING DIMENSIONS FOR INSTALLATION
Frame Size	Pole	MOUNTING
		A	B	C	D		E	F		G		H		K1
400	2	710±1.75	1000±1.75	375±4	80	+0.030	170±0.5	22	0	71	0	400	0	35	+0.62
						+0.011			-0.052		-0.2		-1		0
400	4～8	710±1.75	1000±1.75	335±4	110	+0.035	210±0.57	28	0	100	0	400	0	35	+0.62
						+0.013			-0.052		-0.2		-1		0
450	2	800±1.75	1120±1.75	400±4	90	+0.035	170±0.57	25	0	81	0	450	0	35	+0.62
						+0.013			-0.052		-0.2		-1		0
450	4～8	800±1.75	1120±1.75	355±4	110	+0.035	210±0.57	28	0	100	0	450	0	35	+0.62
						+0.013			-0.062		-0.2		-1		0
500	2	900±2.1	1250±2.1	560±4	100	+0.035	210±0.57	28	0	90	0	500	0	42	+0.62
						+0.013			-0.052		-0.2		-1		0
500	4	900±2.1	1250±2.1	475±4	120	+0.04	210±0.57	32	0	109	0	500	0	42	+0.62
						+0.015			-0.062		-0.2		-1		0
500	6～10	900±2.1	1250±2.1	475±4	130	+0.04	250±0.57	32	0	119	0	500	0	42	+0.62
						+0.015			-0.062		-0.3		-1		0
560	2	1000±2.1	1400±2.1	560±4	130	+0.04	250±0.57	32	0	119	0	560	0	42	+0.62
						+0.015			-0.062		-0.2		-1		0
560	4	1000±2.1	1400±2.1	500±4	150	+0.04	250±0.57	36	0	138	0	560	0	42	+0.62
						+0.015			-0.062		-0.3		-1		0
560	6～12	1000±2.1	1400±2.1	500±4	160	+0.04	300±0.65	40	0	147	0	560	0	42	+0.62
						+0.015			-0.062		-0.3		-1		0
630	2	1120±2.1	1600±2.1	560±4	140	+0.04	250±0.57	36	0	128	0	630	0	48	+0.62
						+0.015			-0.062		-0.3		-1		0
630	4	1120±2.1	1600±2.1	530±4	170	+0.04	300±0.65	40	0	157	0	630	0	48	+0.62
						+0.015			-0.062		-0.3		-1		0
630	6～12	1120±2.1	1600±2.1	530±4	180	+0.04	300±0.65	45	0	165	0	630	0	48	+0.62
						+0.015			-0.062		-0.3		-1		0

● OUTLINE DIMENSIONS FOR INSTALLATION
Frame Size	Pole	OUTLINE
		AC	AD	AB	BB	HA	HD	L1	L2	L
400	2	570	900	900	1450	30	850	249	606	1830
400	4～6	570	900	900	1510	30	850	209	626	2000
450	2	600	926	980	1530	40	960	255	515	1910
450	4~8	600	926	980	1638	32	960	242	657	2055
500	2	660	1115	1112	1720	50	1790	330	990	2370
500	4	660	1000	1112	1720	35	1065	310	669	2160
500	6～12	660	1000	1112	1720	35	1065	310	669	2200
560	2	740	1200	1216	1940	55	1920	270	1120	2650
560	4	740	1050	1216	1938	45	1185	320	815	2475
560	6~12	740	1050	1216	1938	45	1185	320	815	2525
630	2	850	1350	1396	2100	55	2200	265	1320	2950
630	4～12	825	1150	1396	2080	50	1307	365	685	2677

Previous Product: Y2HV Enlarge Power Compact Structure Squirrel Cage Motor
Next Product: YKK High Voltage squirrel Cage Electric Motor

　
　　　　　　 YOU CAN CONTACT US IMMEDIATELY:

Name：	*
Phone：
Email：	*
Other Contact：
Topic：
Contents：	*
Verification Code：	2519 *
